• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Seat trim, Vinyl

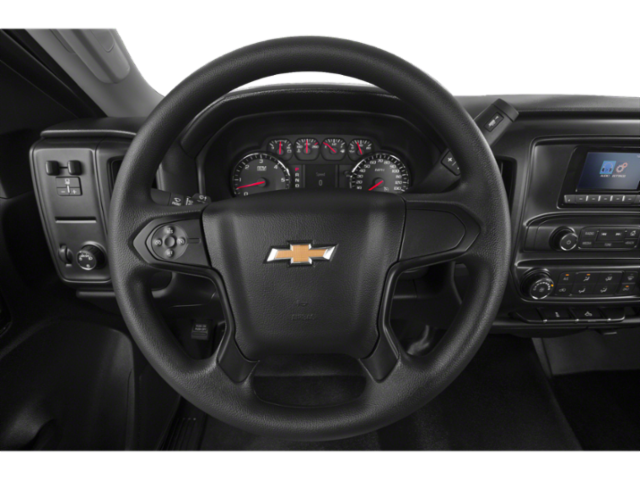

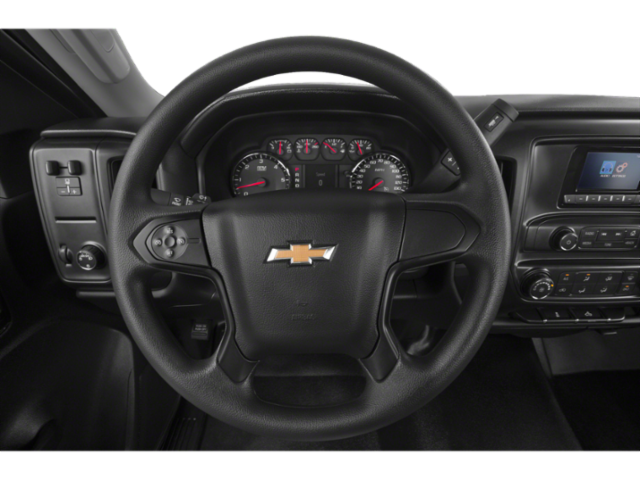

• Steering column, manual Tilt-Wheel

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Rear wheel drive
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

PICKUP BOX, DELETE

• includes capped fuel fill
• (SFW) Back-up alarm calibration
• (9J4) rear bumper delete
• spare tire delete and spare tire carrier delete.

PERFORMANCE PACKAGE, HIGHER PAYLOAD.

• Provides heavier duty frame and rear suspension specially tuned to handle higher payloads. Includes (C7A) 10
• 000 lbs. GVWR.

FLOOR COVERING, COLOR-KEYED CARPETING

• with rubberized vinyl floor mats

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

CHEVROLET 4G LTE

• and available built-in Wi-Fi hotspot offers a fast and reliable internet connection for up to 7 devices
• includes data trial for 1 month or 3GB (whichever comes first);

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

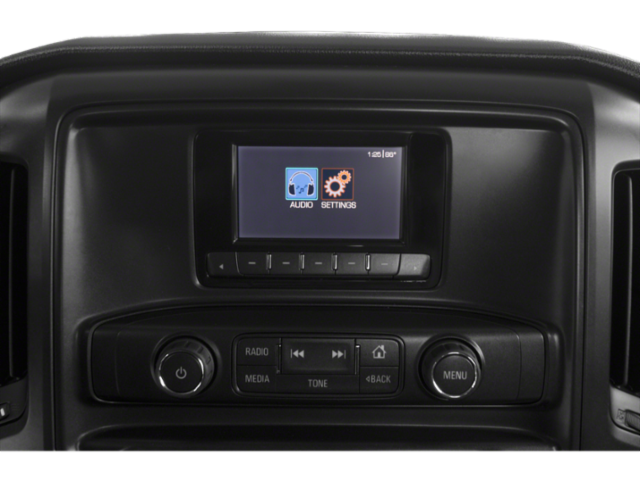

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH 7" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones

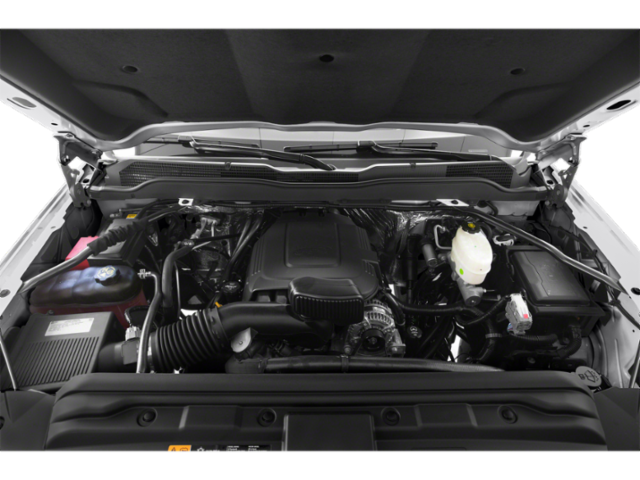

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

REAR CAMERA CALIBRATIONS WITHOUT GUIDELINES

• A calibration without guidelines will be flashed at the plant. Vehicle will not have a rear camera. Camera will be added by the upfitter.

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back up alarm.

SPARE TIRE DELETE

• Deletes the spare tire only. Spare wheel and carrier remain.

• GLASS DEEP-TINTED
• SHIP THRU PRODUCED IN FT. WAYNE ASSEMBLY AND SHIPPED TO KNAPHEIDE TRUCK EQUIPMENT FLINT MI AND RETURNED TO FLINT ASSEMBLY FOR SHIPPING TO FINAL DESTINATION.
• LPO ASSIST STEPS - 4" CHROMED ROUND
• SUMMIT WHITE
• DEFOGGER REAR-WINDOW ELECTRIC
• REMOTE KEYLESS ENTRY Includes (A91) remote locking tailgate.)
• PICKUP BOX DELETE includes capped fuel fill (SFW) Back-up alarm calibration (9J4) rear bumper delete spare tire delete and spare tire carrier delete.
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE;
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• LICENSE PLATE KIT FRONT
• PERFORMANCE PACKAGE HIGHER PAYLOAD. Provides heavier duty frame and rear suspension specially tuned to handle higher payloads. Includes (C7A) 10 000 lbs. GVWR.
• FLOOR COVERING COLOR-KEYED CARPETING with rubberized vinyl floor mats
• POWER OUTLET 110-VOLT AC
• AIR BAG DEACTIVATION SWITCH FRONTAL PASSENGER-SIDE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• CHEVROLET 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable internet connection for up to 7 devices includes data trial for 1 month or 3GB (whichever comes first);
• GVWR 10 000 LBS. (4536 KG)
• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• ALTERNATOR 220 AMPS
• LPO CHROME RECOVERY HOOKS
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK; Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp and includes (DD8) auto-dimming inside rearview mirror.)
• WHEELS 18" (45.7 CM) PAINTED STEEL includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.
• BUMPER REAR DELETE
• PAINT SOLID
• DARK ASH WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH 7" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• REAR CAMERA CALIBRATIONS WITHOUT GUIDELINES A calibration without guidelines will be flashed at the plant. Vehicle will not have a rear camera. Camera will be added by the upfitter.

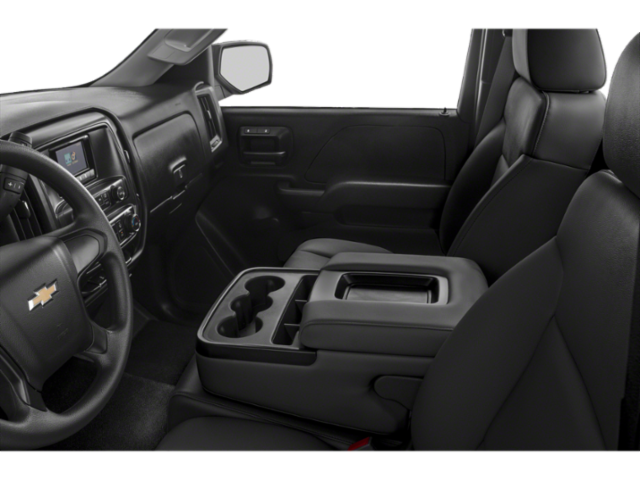

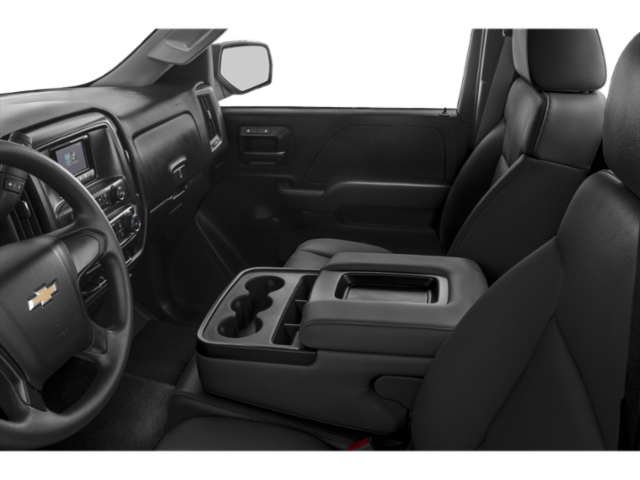

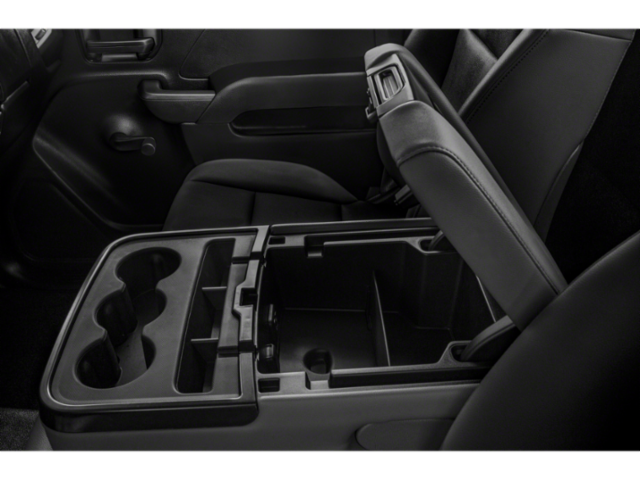

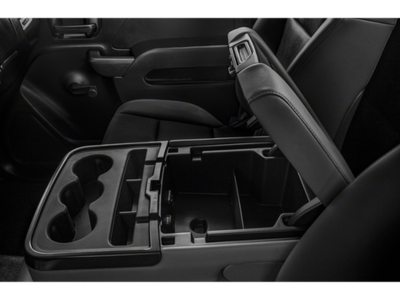

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back up alarm.
• SPARE TIRE DELETE Deletes the spare tire only. Spare wheel and carrier remain.
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Bluetooth® Connection
• Split Bench Seat
• Vinyl Seats
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3272
• Curb Weight - Rear (lbs): 2469
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Vehicle Weight Rating Cap (lbs): 9300
• Gross Combined Wt Rating (lbs): 16600
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1040
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2575
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3700
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Full Floating
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QGM
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QGM
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZWF
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT265/70R18E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R18E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT265/70R18E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Front Tire Capacity (lbs): 4800
• Rear Tire Capacity (lbs): 6200
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 X 8.0
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 45.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.60
• Length, Overall w/o rear bumper (in): 224.43
• Width, Max w/o mirrors (in): 80.12
• Height, Overall (in): 77.80
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 117.10
• Cab to Axle (in): 55.16
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.78
• Ground Clearance, Rear (in): 8.78
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 61.22
• Summary

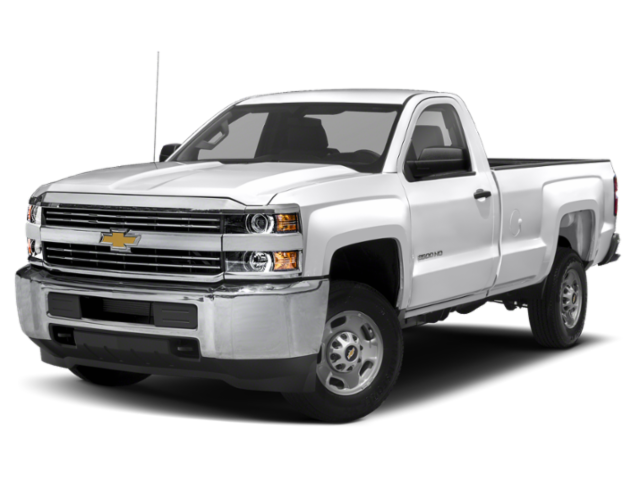

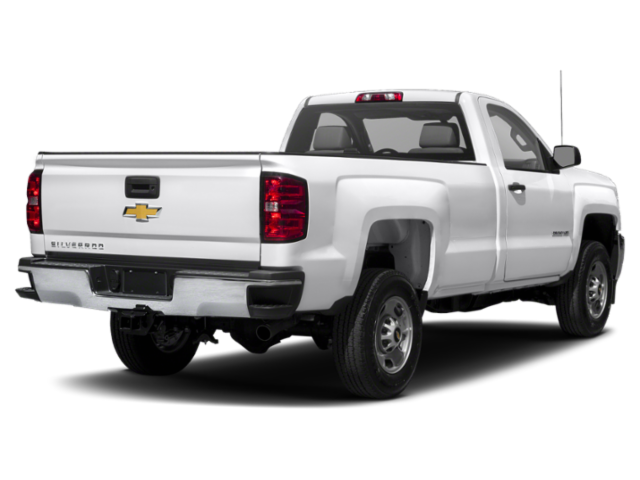

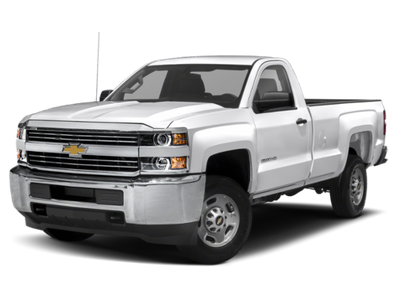

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Regular Cab Chassis Cab
• Body Style: Regular Cab Pickup
• Body Code: ZW9
• Body Code: E63
