• Air Conditioning, Integral in dash mounted
• AM/FM/CD stereo radio with aux input & USB port
• Cruise control
• Cup holders
• Dome light
• Door storage pockets
• Floor mats
• Overhead storage shelf
• Pwr windows & door locks
• RH dash washer bottle service access
• Seatback pockets
• Tilt and telescoping steering column

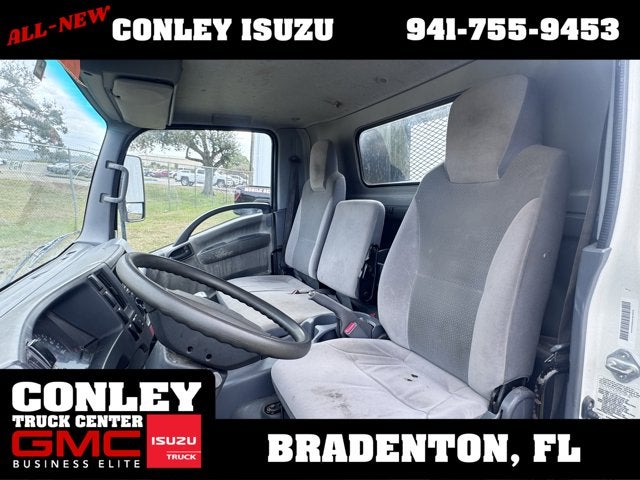

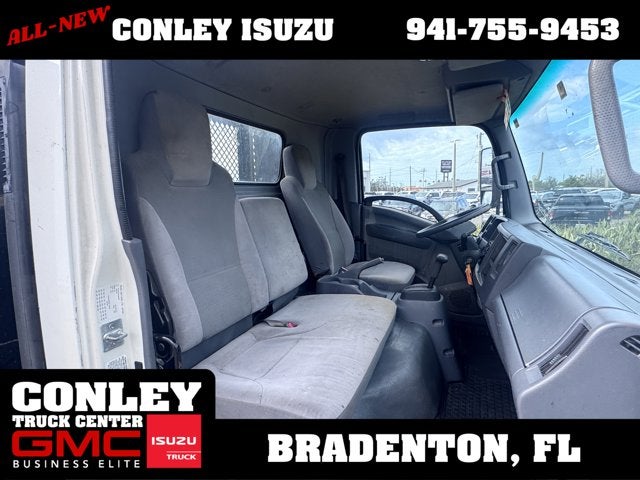

• Tricot cloth covered reclining highback driver seat with single two occupant fold down passenger seat with tray backs

• Air Cleaner, 11 in. diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
• Alternator, 145 Amp. output with integral regulator
• Battery, Single Delco 12-V maintenance free 750 CCA frame mounted battery box
• Exhaust System, Single horizontal aluminized steel with catalytic converter and oxygen sensor devices
• Front Axle, Reverse Elliot "I"-beam rated at 6830 lbs. (3098 kg). Includes integral hydraulic power steering. Ratio 18.8-20.9:1
• Front GAWR, 6630 lbs capacity
• Front Suspension, 8440 lbs. (3828 kg) capacity. Semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
• Front/Rear Tires, 225/70R19.5G (14 ply) LRR (low rolling resistance) tubeless steel belted radials, all season
• Front/Rear Wheels, 19.5" x 6", 6-hole disc, painted white
• Fuel Tank, 30-gallon (113.6L) rectangular fuel tank. Mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
• GVWR, 14,500 lbs (6577 kg) capacity
• Rear Axle Ratio, 5.375:1
• Rear Axle, R040, Full-floating single-speed, 11,020 lbs. (4999 kg) capacity with oil lubricated rear wheel bearings
• Rear GAWR, 11,020 lbs (4999 kg) capacity
• Rear Suspension, 12,900 lbs. (5851 kg) capacity. Semi-elliptical steel alloy multi-leaf springs. Includes shock absorbers.
• Rear wheel drive
• Truck Application

• 4-channel anti-lock brake system (ABS)
• Daytime running lamps
• EBD (Electronic Brake Distribution)

GAS ENGINE, GMPT-V8 8 CYLINDER V BLOCK, FOUR CYCLE OVERHEAD VALVE WATER COOLED VORTEC 6 LITER SFI V8 297 HP GROSS @ 4300 RPM; 372 LB-FT GROSS TORQUE @ 4000 RPM.

• Electronically controlled sequential fuel injection. Six bolt main cap design for heavy duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control
• engine oil cooler
• High Idle Mode (1200 rpm) (STD)

• GAS ENGINE GMPT-V8 8 CYLINDER V BLOCK FOUR CYCLE OVERHEAD VALVE WATER COOLED VORTEC 6 LITER SFI V8 297 HP GROSS @ 4300 RPM; 372 LB-FT GROSS TORQUE @ 4000 RPM. Electronically controlled sequential fuel injection. Six bolt main cap design for heavy duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control engine oil cooler High Idle Mode (1200 rpm) (STD)
• Rear Wheel Drive
• Power Steering
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Front Disc/Rear Drum Brakes
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Cloth Seats
• Bucket Seats
• Floor Mats
• Adjustable Steering Wheel
• Power Door Locks
• Power Windows
• A/C

• Vehicle
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: 1740
• Cooling System
• Total Cooling System Capacity (qts): 17.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6630
• Gross Axle Wt Rating - Rear (lbs): 11020
• Curb Weight - Front (lbs): 3430
• Curb Weight - Rear (lbs): 1896
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 20500
• Suspension
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 8440
• Spring Capacity - Rear (lbs): 12900
• Axle Type - Front: Reverse I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 5.375
• Shock Absorber Diameter - Front (mm): 42
• Shock Absorber Diameter - Rear (mm): 42
• Stabilizer Bar Diameter - Front (in): 1.65
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 12.6 x 4.72
• Tires
• Front Tire Order Code: XTN/R3M
• Rear Tire Order Code: YTN/S3M
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 6630
• Rear Tire Capacity (lbs): 12460
• Revolutions/Mile @ 45 mph - Front: 643
• Revolutions/Mile @ 45 mph - Rear: 643
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Wheels
• Front Wheel Size (in): 19.5 x 6
• Rear Wheel Size (in): 19.5 x 6
• Front Wheel Offset (mm): 127.0
• Rear Wheel Offset (mm): 127.0
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Turning Diameter - Curb to Curb (ft): 33.5
• Turning Diameter - Wall to Wall (ft): 38.8
• Frame
• Frame Type: Ladder
• Sect Modulus Rails Only (in³): 7.20
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.5 X 2.76 X 0.24
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30
• Fuel Tank Location: In frame rail
• Exterior Dimensions
• Wheelbase (in): 109.0
• Length, Overall w/o rear bumper (in): 200.5
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 90.9
• Overhang, Front (in): 48.4
• Overhang, Rear w/o bumper (in): 43.1
• Front Bumper to Back of Cab (in): 70.9
• Cab to Axle (in): 86.5
• Cab to End of Frame (in): 129.6
• Ground to Top of Frame (in): 33.0
• Frame Width, Rear (in): 33.5
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Body Length Default Value (ft): 12
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 38.4
• Front Leg Room (in): 29.5
• Front Shoulder Room (in): 70.7
• Front Hip Room (in): 67.7
• Summary

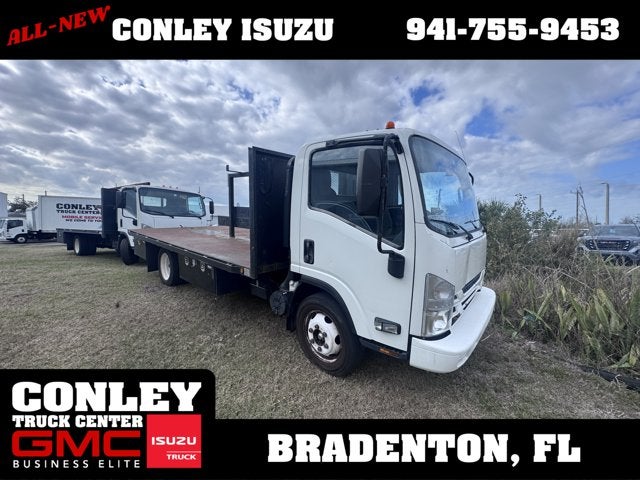

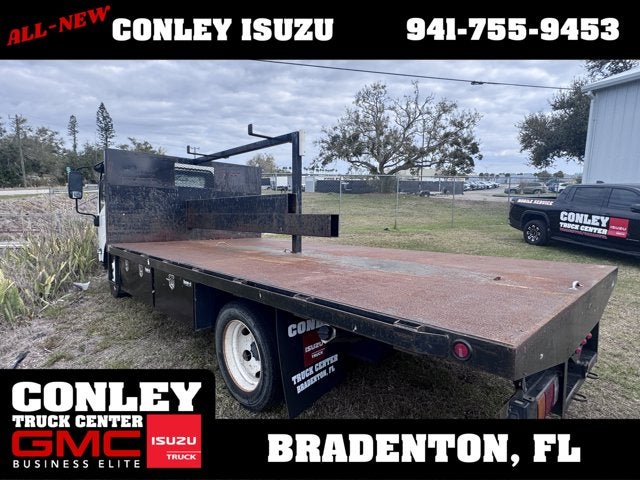

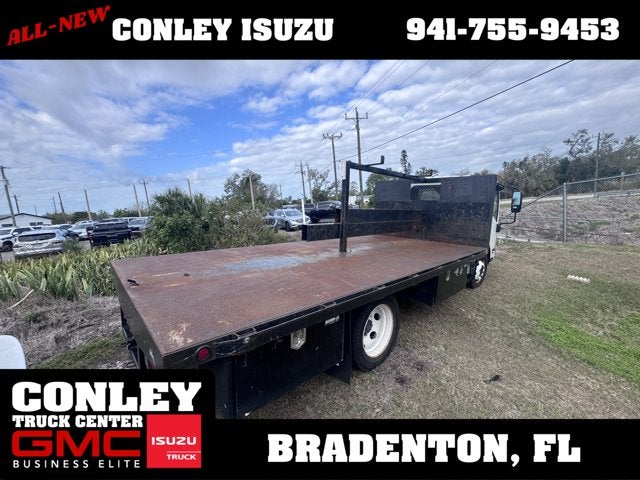

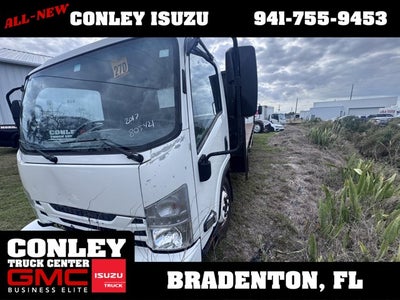

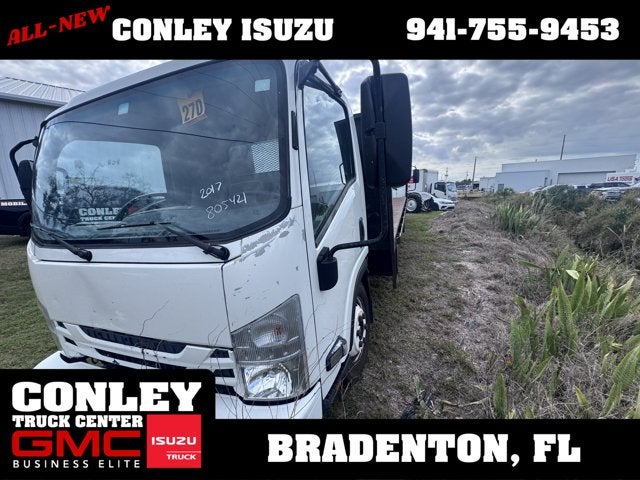

• Vehicle Name: Isuzu NPR HD GAS REG
• Body Style: Tilt Chassis Cab
• Medium Duty Performance
• Driver Ratio: 1
• Torque @ Clutch Engage (ft-lbs): 260
• Torque Converter: 2.60
• Static Loaded Radius (in): 15.0
• Max Speed For Gradeability: 78
